MB-D12

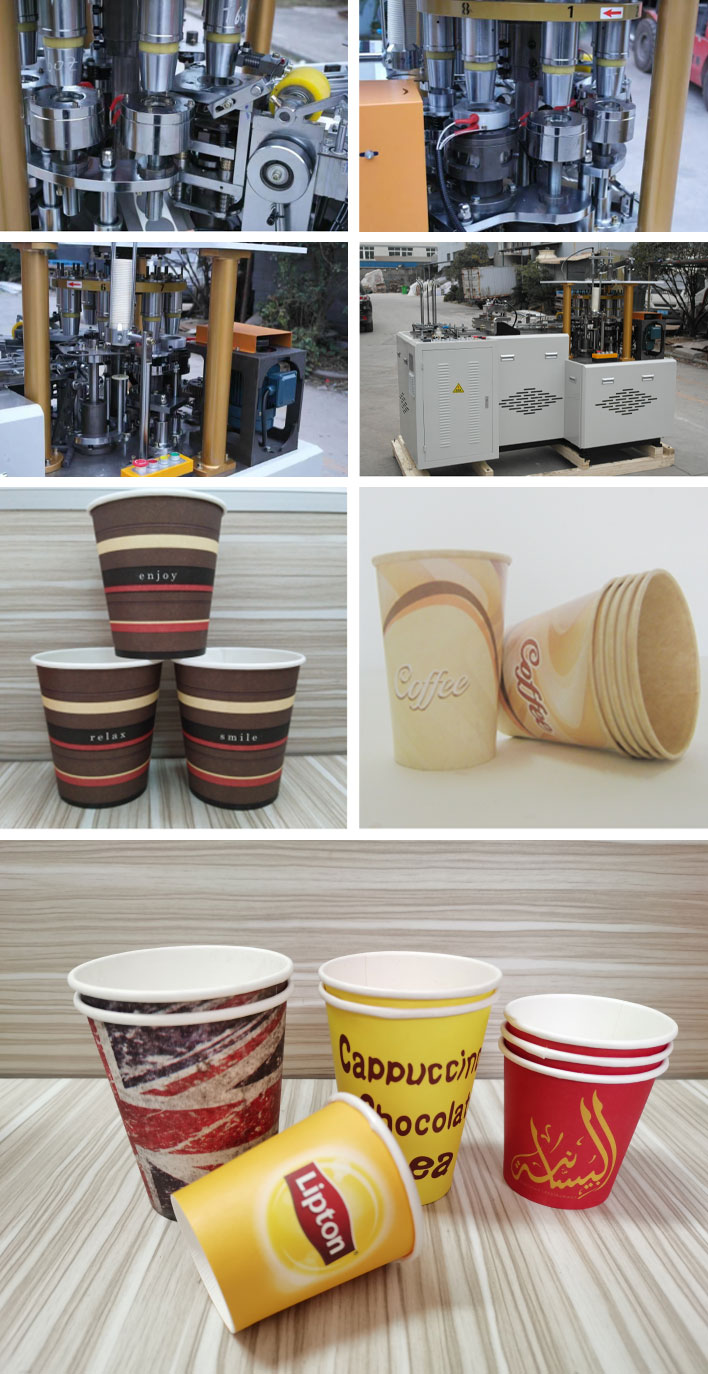

Medium Speed Paper Cup Machine
description
Technical data:
| Machine with heater sealing | Machine with ultrasonic sealing | |
| Paper Cup Size Range: | 2.5 ~~12 OZ (80-350ml) | 2.5 ~~12 OZ (80-350ml) |
| Production Speed: | 70~~90 pcs/min | 70~~90 pcs/min |
| Paper cup top diameter: | Min 45mm ~~Max 90 mm | Min 45mm ~~Max 90 mm |
| Paper cup bottom diameter: | Min 35mm~~Max 60mm | Min 35mm~~Max 60mm |
| Paper cup height: | Min 35mm~~Max 115 mm | Min 35mm~~Max 115 mm |
| Raw material: | 170~~230gsm Single PE coated paper | 170~~320gsm Single and double PE coated paper |
| General power: | 5kw | 7kw |
| Electricity: | 380V 3 phases or customize | 380V 3 phases or customize |
| Weight: | 1500kg | 1500kg |
1 40ft container can load 12sets MB-D12 machine,it can save your sea freight
Electrical configurations:
| Parts name | Brand and origin |
| Inverter | Schneider |
| Button | Onpow, Chinese Best Brand |
| Relay | SCHNEIDER |
| Switch | Chnt, Chine Best |
| Main motor | 1.5 kw China Dasu motor |
| Knurling motor | 0.75kw motor |
| Open cam | Made in shandong |
Specification:
1. Paper cup bottom sealing by heater.
2. Cup side sealing by heater or ultrasonic as per your requirements.
3. With our unique original designed bottom knurling system, single shaft, Korea type, this ensures the low leaking ratio and high quality of paper cups.
4. With unique Open Cam design,it would be more stable when machine running at a high speed.
5. With automatic lubricating system, it will automatic lubricating to every moving parts when machine runs.
6. Every cam will be harden to ensure it can run for a long long time.
7. Machine is designed with double turning plate
8. Bottom paper we have a special control system, if connect with air source, bottom would be in pace with the cup body, so its more efficient and “0” waste on bottom paper
