TECHNICAL DATA:
Cup size: 2.5oz ~ 16oz
Cup top diameter: 50~100mm
Cup height: up to 135mm
Material: single or double side PE/PLA PAPER
Speed: 130-160 pcs/min
Rated power: 24kw
Air consumption: 1cbm/min
Weight: 3000kgs

SPECIFICATIONS:

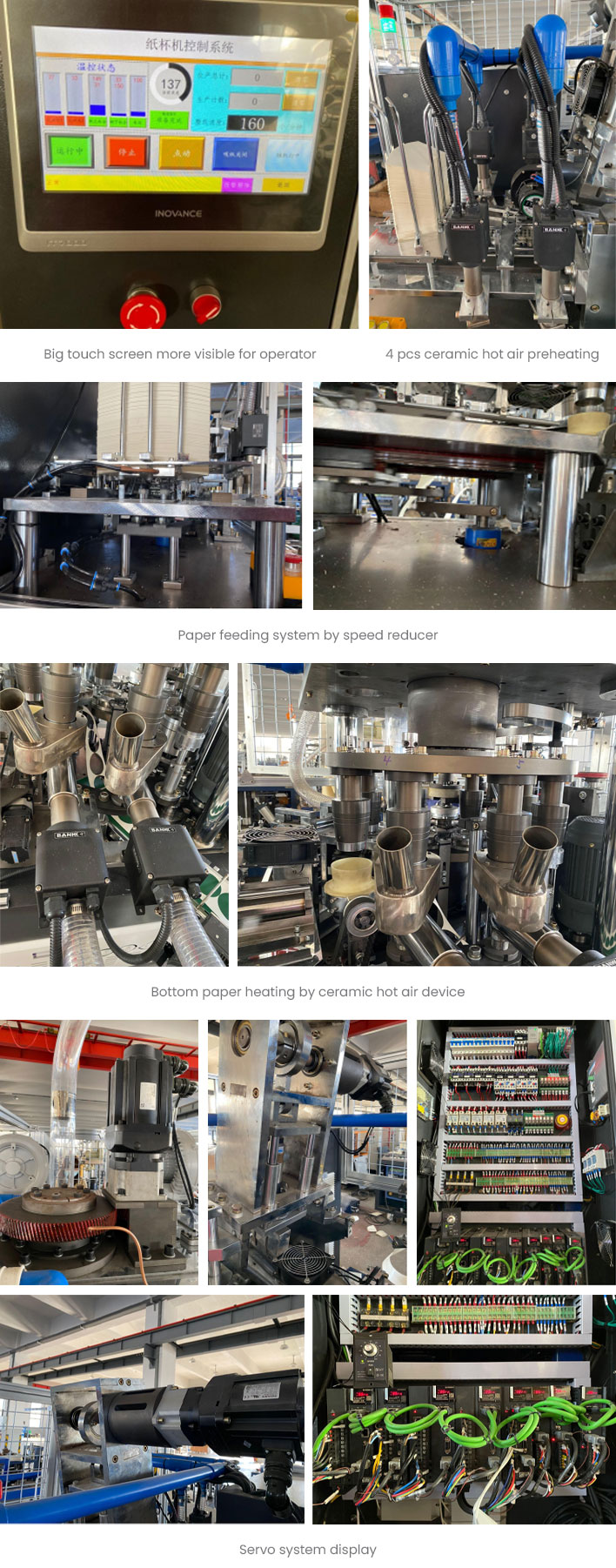

1- MACHINE IS FULLY EQUIPPED WITH SERVO MOTOR
2- TOTAL 8 SETS OF SERVO MOTOR AND SERVO DRIVEN SYSTEM USED IN MACHINE MAIN SHAFT MOVING, BOTTOM PAPER FEEDING, CUP BODY DELIVER UP, SIDE SHAFT MOVING, SIDE PLATE MOVING, HOT AIR DEVICE MOVING AND ULTRASONIC SEALING DRIVEN SYSTEM.
3- Equipped WITH BIG 10inch Innovance TOUCH SCREEN and PLC control
4- With automatic counting and stacking system
5- Fully oil lubrication system
6- Side sealing by 4 pcs ceramic hot air device plus ultrasonic sealing system to ensure the best side sealing quality at a high speed.
7- Bottom sealing by ceramic hot air device, high efficiency and clean sealing. 8- Sucking by vaccum air more stable feeding
9- Cup blank feeding controlled by speed reducer, mechanical system let the working more stable and durable.
10- Automatic silicone oil circulation system for better bottom folding and sealing.. 11- Single pe or double pe material can work in this machine as optional.
12- High speed up to 160 pcs/min
13- Bottom paper servo control prefeeding system 0 wastage from the bottom paper.
