High Speed Paper Cup Machine


Technical data:
Paper Cup Size RANGE: 2.5 ~~12OZ
Speed: 100~~120pc/min
Paper cup top diameter: Min 45mm ~~Max 104mm
Paper cup bottom diameter: Min 35mm~~Max 75mm
Paper cup height: Min 35mm~~Max 115mm
Raw material: 180~~350gsm, single or double PE coating paper
General power: 13 Kw
Electricity: 380V 3 phases
Air consumption: 0.2 cbm/min
Weight: 2700 kg

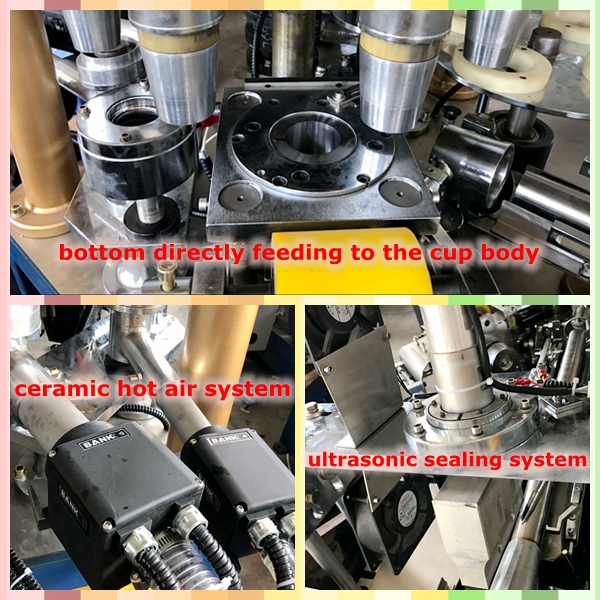

1. Paper cup bottom sealing by Banko Ceramic hot air system, heating elements is Leister brand import from Switzerland.
2. It is easy to make cups of different size by changing moulds.
3. Cup side sealing by Hot air and ultrasonic.
4. Double PE coating paper cups for cold drink as well as hot drink.
5. With our unique original designed bottom knurling system, single shaft, Korea type, this ensures the low leaking ratio and high quality of paper cups.
6. With automatic lubricating system, it will automatic lubricating to every moving parts when machine runs.
7. Every cam will be harden to ensure it can run for a long long time.

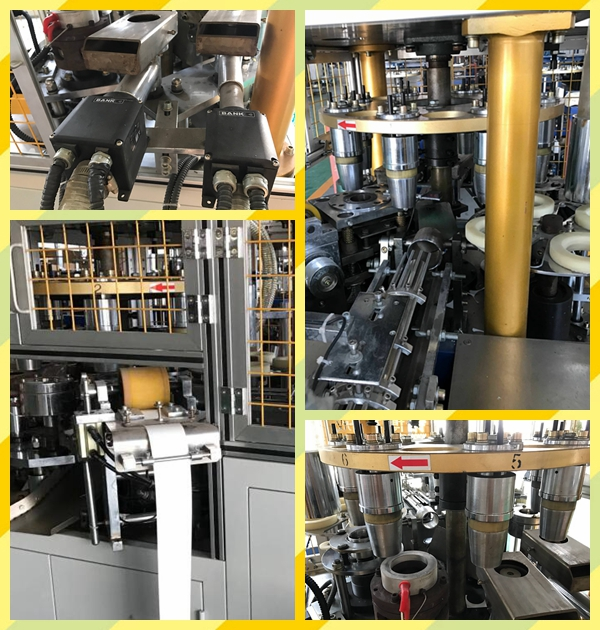

8. Machine is designed with double turning plate
9. Equipped with automatic cup collecting stacking and counting system.
10.  Bottom paper we have a special pre-feeding system, so the bottom paper feeding is “0” waste.

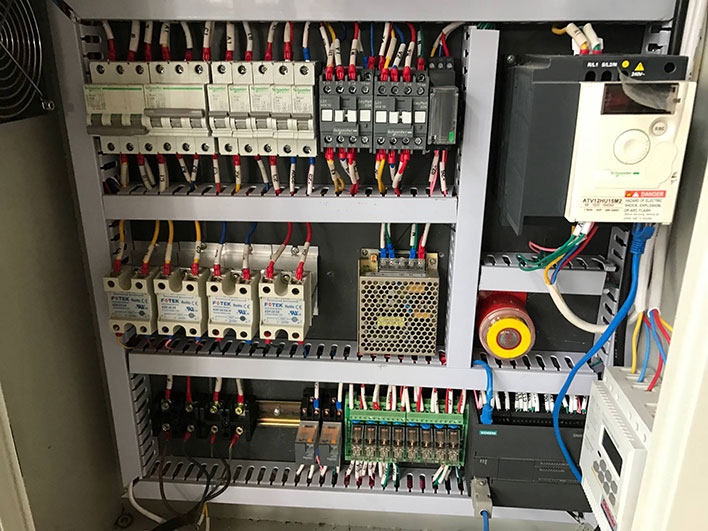

11. Adopt the SIEMENS PLC micro computer system and also equipped with SIEMENS touch screen for easy and visible operation.
12. The upgraded OPEN CAM for longer life span and easy Maintenance.
13. Optional quality checking system could be added.
