Technical specifications:

Type	MB-800A carton box erecting forming machine
Suitable material:	200-600gsm white card board, PE coated paper, Kraft paper, corrugated paper
Production speed:	50-140pcs/min
Blank paper size:	Length 100-450mm, Width 100-580mm, Height 15-200mm, Angle 4-50°
Blank paper weight:	Max. 2mm for corrugated paper
Total power:	4KW
Total weight:	1900KGS
Overall dimension:	3520*1465*1550mm
Packing dimension:	3700x1510x1700mm
Power source:	380V, 50HZ

Machine brief details:
1). It is an ideal equipment to produce paper box such like hamburger box, chips box, fried chicken box, kids
 meal box, fast food box, fast noodles box etc.
2). With firm structure, high quality, low noise and high efficiency.
3). It has paper feeding unit, adjusted unit, glue unit, forming unit, finished products collecting unit and also counting unit.

Main differences and advantages:
1). With very experienced engineers and designer, we never stop, keep improving and perfecting on machines. We can custom order and put plasma device or hot melt glue device on the machine as customer required.
We were the first factory in China who choosing servo motor for feeding paper system instead of traditional
cam system, it have less noise and easier to adjust in order to make different size and shape boxes.

1. Our factory use servo motor driving system for paper feeding .less noise and adjustable is easier when changing moulds . patent No.:ZL 2014 2 065 1723.3	But Other supplier  use old cam running driving system Much nosie and adjustable is trouble when changing moulds .

2. We improved paper holder parts ,and use Imported wider three belts to feeding paper, much Stable and reduce paper wasting .	The old style(other supplier) paper holder is easy to make the Paper trackslip ,the roller is easier abrasion

3. We improved and use bigger and heavier gear sleeve instead of usual small gear sleeves, help in Machine. running more stable. All the gears have been second processed by gear grinding machine, in order to make it smooth, then go quenching treatment. For those parts we pay extra processing money because we want it to be perfect quality.

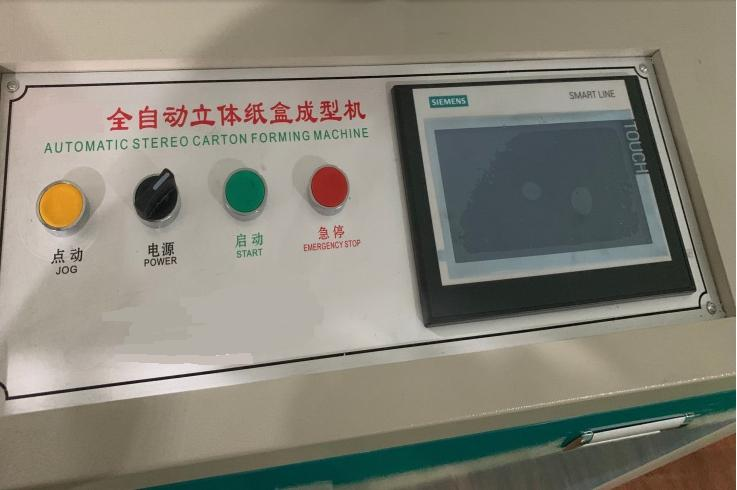

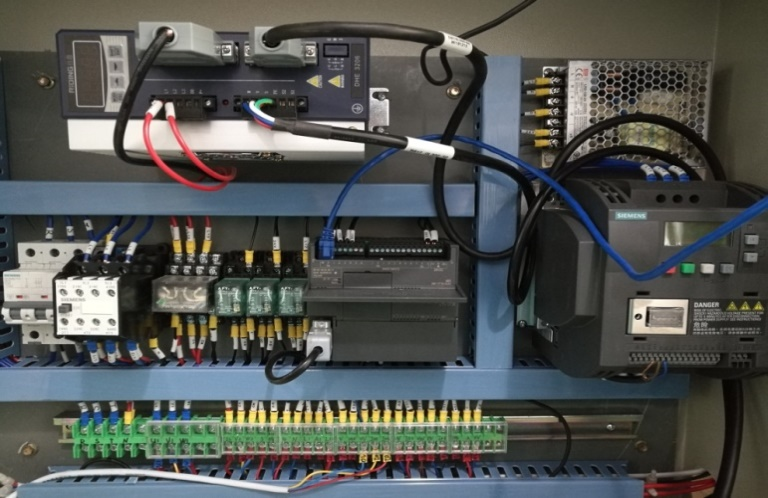

4 . Nearly all electrical parts (include PLC and Touch screen) use Simens ,Germany brand

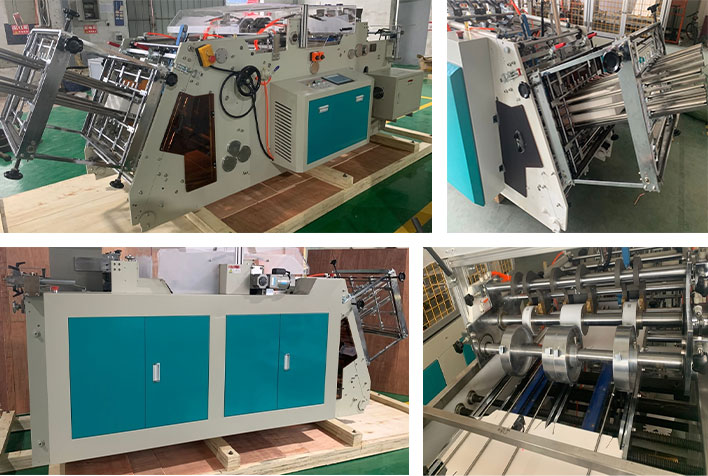

Machine Details Photo :
