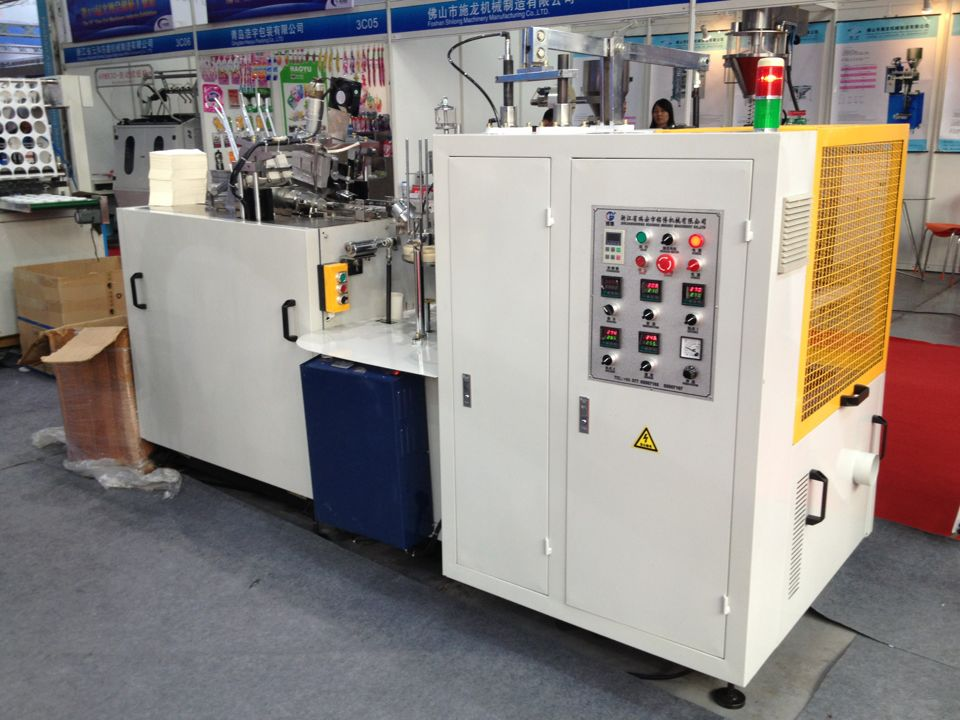

MB-S35

Paper Bowl Machine with Ultrasonic Sealing

description

Technical data:
Max Paper Cup Size : 1000ml
Speed:   35-45 pcs/min
Paper cup top diameter:Min 100- Max 150mm
Paper cup bottom diameter: Min 80- Max 120mm
Paper cup height: Max 115mm, higher cups is available by making specially.
Raw material: 220~~350gsm Single PE or Double PE coated paper
General power: 19 kw
Electricity: 380V 3 phases
Weight: 2200kg
Measurement: 2.8m×1.2m×1.6m

Specification:
1. Cup side sealing by ultrasonic.
2. It is very good for noodle cup or icecream bowl and soup cup forming.
3. Bottom sealing air BLOWING system.
4. It is easy to make cups of different size by changing moulds.
5. Single or double side PE coated paper cups for cold drink and hot drink.
6. With robotic arm and 3 pillar shafts each side.
7. Total 9 cams adopted in the machine more accurate and better performance.
8. All the cover could be take off at 1 min, and very convenient for daily maintenance and easy to do the repair.
9.  Safety cage could be made according to customer requirements, cost USD500 EXTRA.
10. Engineer service and after sale service: Spare parts guarantee for one year, and we can send technician for installation and training at the cost of buyer.

Features:

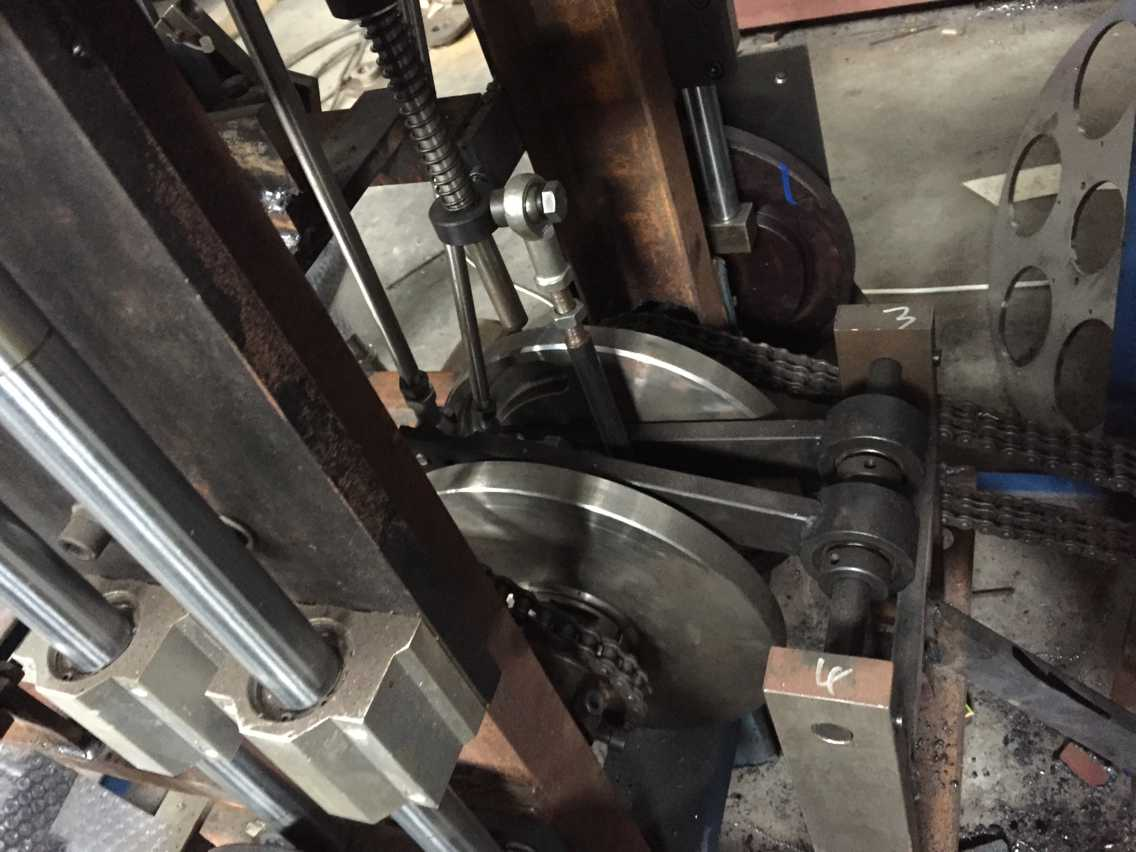

3 big cam design, which controls the cup clamp, more tight and neat for cup forming, and also easy adjustment. Better performance.

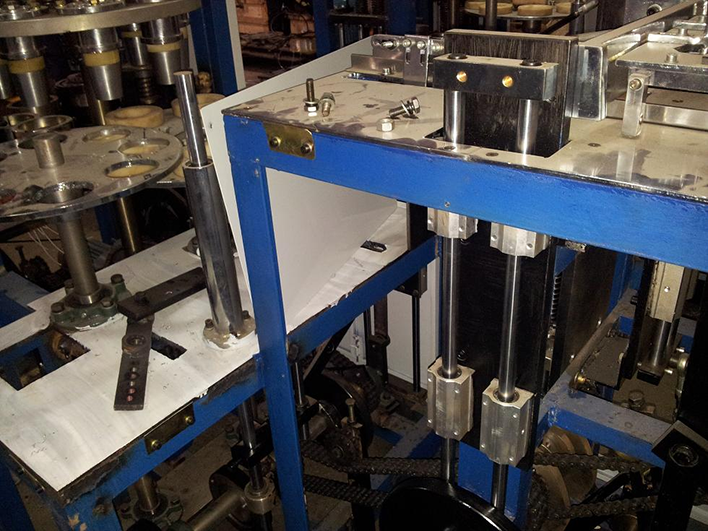

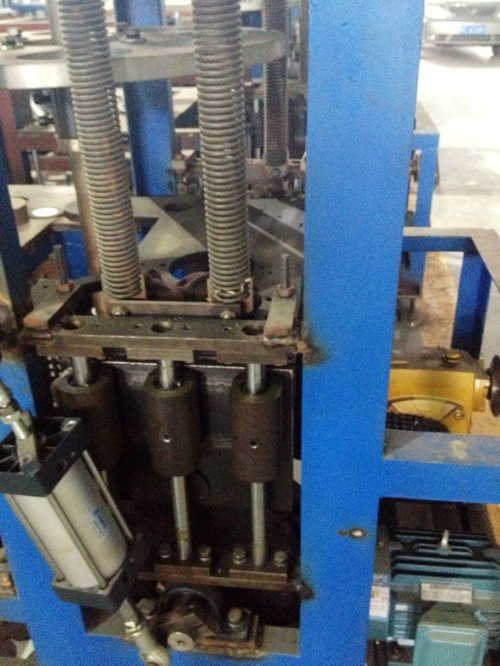

  3 pillar shafts each side, the equal force and better performance, also durable.
  6cm*6cm standard iron frame, heavy duty

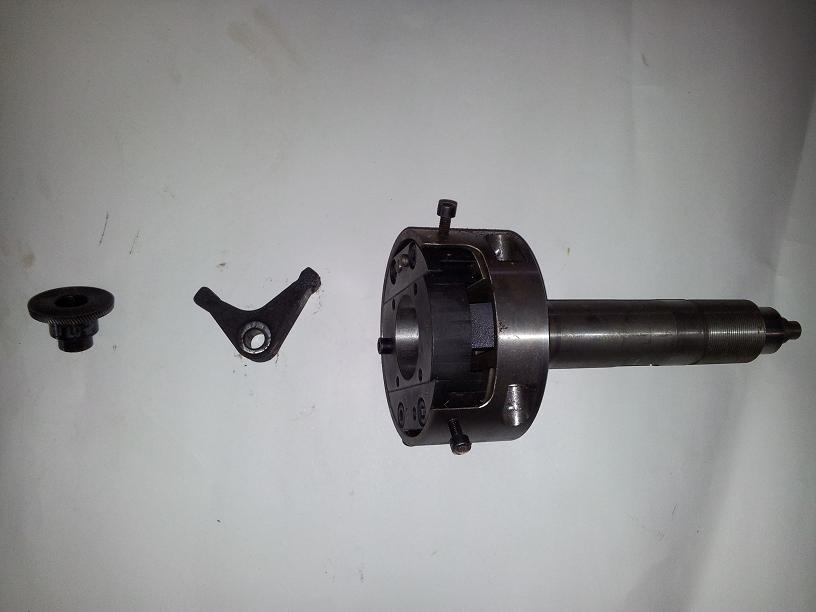

  One shaft bottom knurling system, korea design, the knurling power is 4 times as other’s machine, ensures the high quality and low leak rate of the cups.

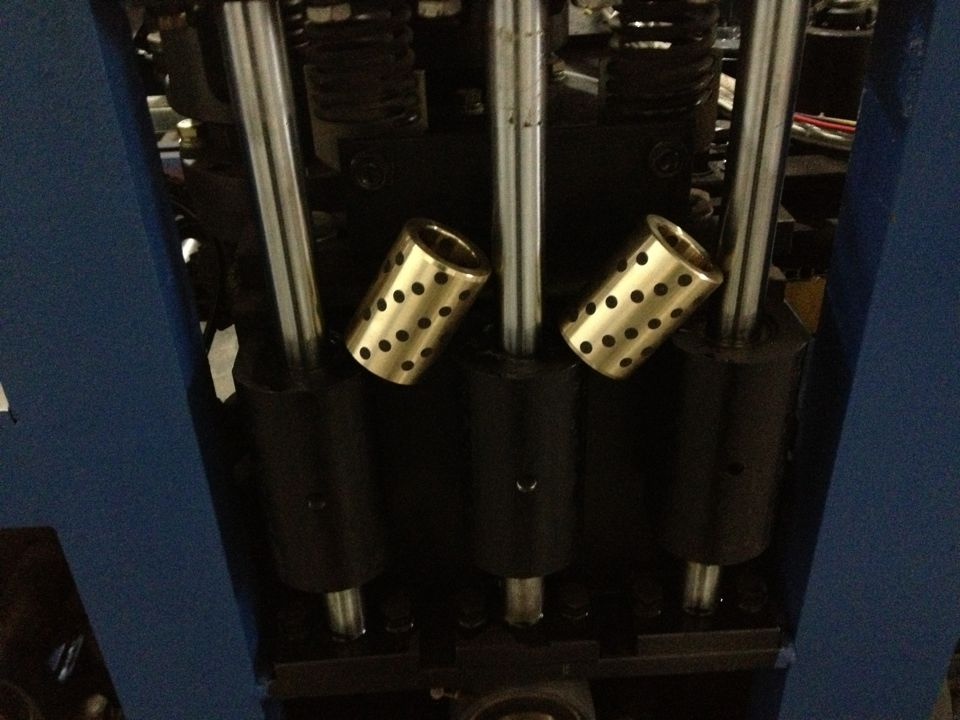

  two copper + one linear bearing more durable partners

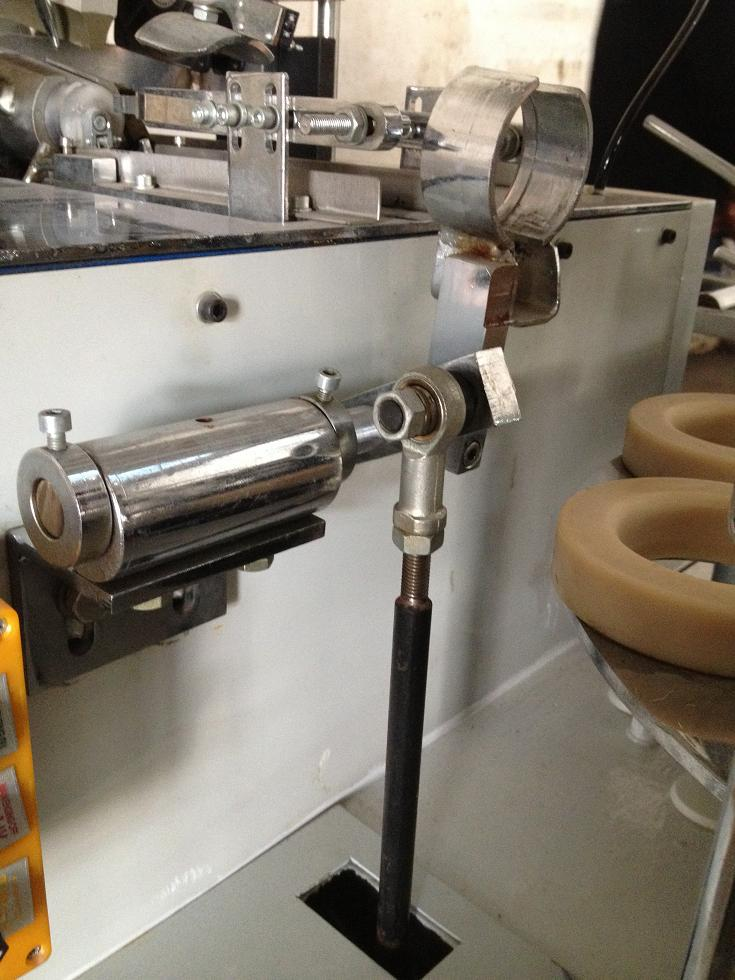

  mechanical hand for transfer the paper cup, more accurate and fluent running.
  Automatic failure alarm system
The cover all hung there and could be take off within 2 min, easy for maintenance.

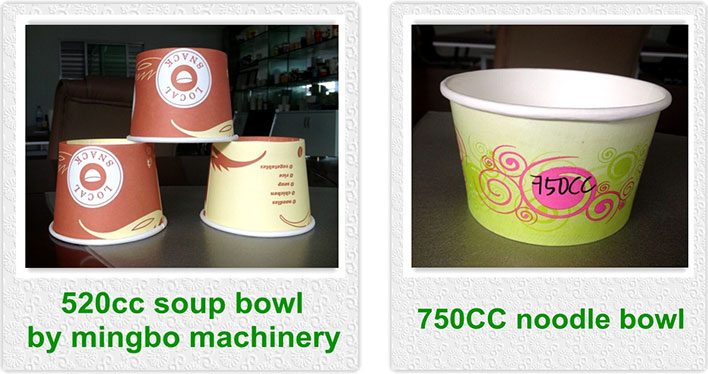

Finished product:
