MB-C35H

HIGH Speed Paper Bowl Machine

description

Technical data:
Paper Cup Size RANGE: 18~~35OZ
Speed: 65~~85pc/min
Paper cup top diameter: Min 100mm ~~Max 145mm
Paper cup bottom diameter: Min 90mm~~Max 115mm
Paper cup height: Min 50mm~~Max 115mm
Raw material: 180~~350gsm, single or double PE coating paper
General power: 15 Kw
Electricity: 380V 3 phases
Air consumption: 0.2 cbm/min
Weight: 3000 kg





Specification:

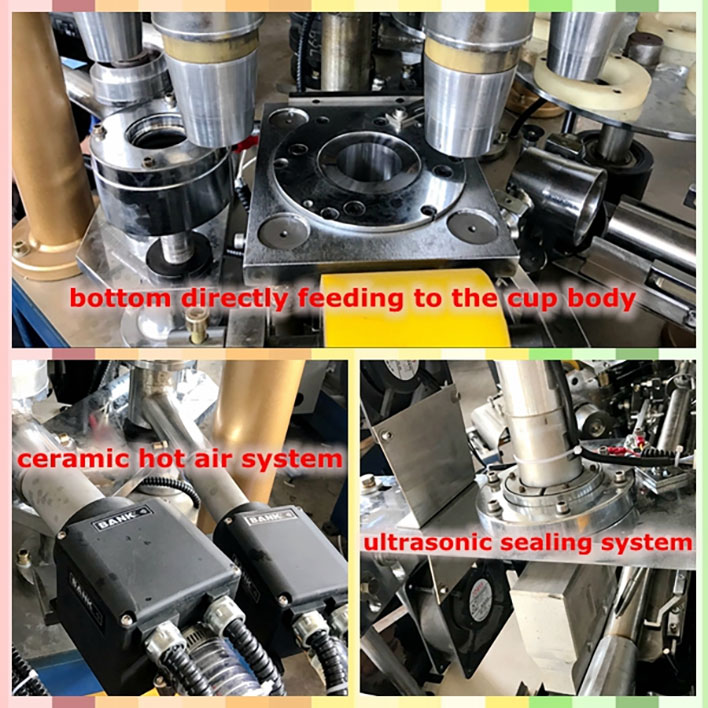

1. Paper cup bottom sealing by Leister CERAMIC hot air system, BRAND BANKO.
2. Paper Fan preheating by ceramic hot air for fast working.
3. It is easy to make cups of different size by changing moulds.
4. Cup side sealing by ultrasonic.
5. With our unique original designed bottom knurling system, single shaft, korea type, this ensures the low leaking ratio and high quality of paper cups.
6. With automatic lubricating system, it will automatic lubricating to every moving parts when machine runs.
7. Every cam will be harden to ensure it can run for a long long time.
8. Machine is designed with double turning plate
9. Equipped with automatic cup collecting stacking and counting system.
10.  Bottom paper we have a special pre-feeding system, so the bottom paper feeding is “0” waste.
Equip with siemens plc and siemens touch screen, visible operation.
