Technical data:
Paper Cup Size RANGE: 8 ~~16 OZ
Speed: 50~~55pcs/min
Raw material: 200~~350gsm Single PE coated paper or varnished cardboard paper
General power: 2.5kw
Electricity: 380V 3 phases or 220V 1 phase
Weight: 1500kg
Measurement: 2.50m×1.20m×1.90 m

Working procedure:
Outer sleeve paper pre-feeding and edge welding--paper bottom folding--glue spraying--the finished inner blank cup drop down--double wall combined together and pressed to be strong--and then cup delivery.

Specification:
1. It is easy to make cups of different sizes by changing moulds.
2. Cup outer sleeve side sealing by ultrasonic.

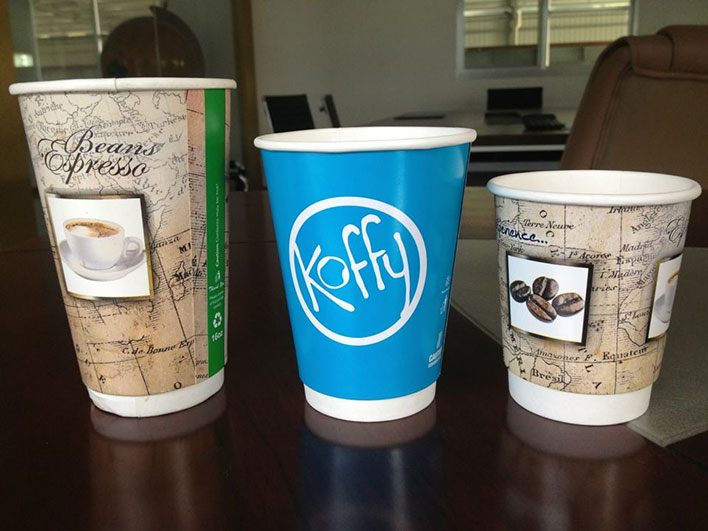

3. Double wall paper cups for hot contents which will keep your hand free from the heat.
4. Sucker import from Taiwan, which can reach 100 million times’ life span.

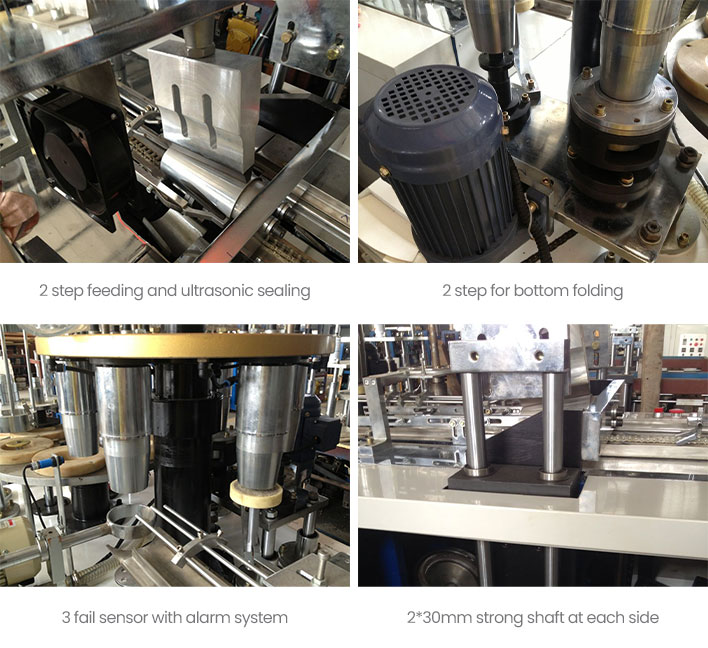

Machine detail show:
