MB-CQ-850

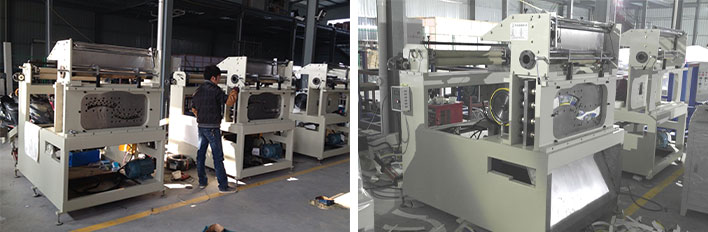

Automatic Punching and Die Cutting Machine
description
Description：
Punching and die cutting machine can work following the photo sensor or by setting a certain length in the program in the PLC controller with touch screen. It is a good choice for punching and die cutting cup fan paper or aluminum foil pieces with different sizes by changing molds, high speed and good performance.
High precision and much lower waste, an ideal choice for paper cup making in large quantity.

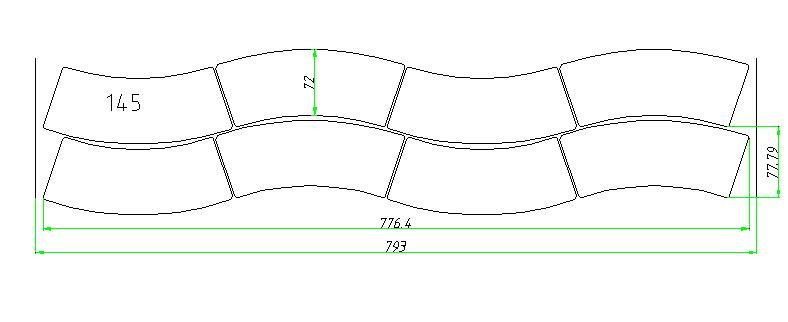

Die Line Sample show:

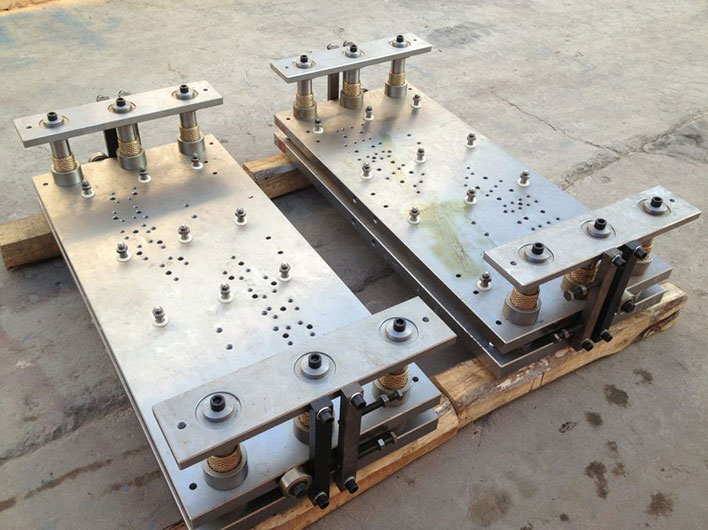

The material of mold is the mold steel import from SWITZERLAND, endurable and good performance.
wastage percentage would be about 10-15%.
MAIN PARTS
| AC SERVO MOTOR | MITSUBISHI 3KW JAPAN |
| INVERTER | SCHNEIDER 2 PCS |
| PHOTO CELL | PANASONIC JAPAN |
| TOUCH SCREEN | SIEMENS |
| PLC SYSTEM | SIEMENS |
| BUTTON | CHINA ONPOW, TOP BRAND |
| SWITCHES | CHNT, CHINA |
| MAIN MOTOR | DASU CHINA, 2.2KW |
| POWDER BRAKE | CHINA 50N |
| AIR SHAFT | CHINA 3INCH |
| HYDRAULIC LIFTING SYSTEM | CHINA |
| TENSION CONTROLLER | CHINA |
Technical Data:
Max Paper Width: 850mm
Max Speed: 250 Strokes/min for blank paper
Available material: 100-900 gsm cardboard paper or PE coated paper
Electric Power: 5 KW
Net Weight: 2100 Kg
Dimension of Machine: 3500mm×1500mm×2000mm
