MB-420 cup lid machine can use almost all kinds of plastic material, like PVC, PET, PS, HIPS and so on, you can make lids with diameter 30-160mm by changing moulds. And it can also doing the automatic stacking of maximum 50mm height(usually 5 pcs/pile).

Technical Data:
1. Speed: 15-35 strokes/min.
2. Diameter of Lids: 30-160mm.
3. Max roll diameter: 540mm
4. Max Forming Depth: 30mm.（special depth like 45mm and 60mm could be made special to customer’s request. ）
5. Max Forming Area: 420*160mm
6. Total Power: 4kw.
7. Air Consumption:  0.8cbm/min.
8. Air Pressure: 0.4-0.7mpa.
9. Dimensions of Machine: 2500mm×1000mm×1600mm
10. Weight: 1000kg.

Machine detail show:

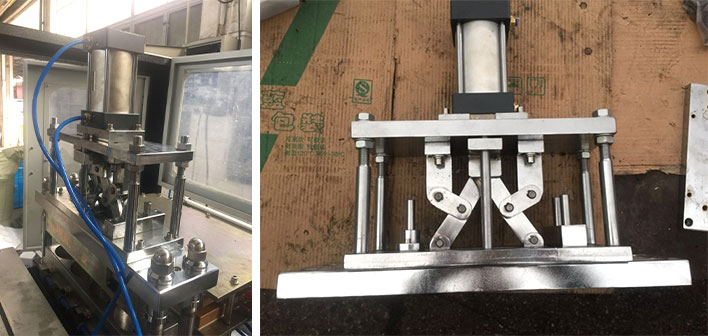

NEW DESIGN THERMO FORMING AIR LOCKING SYSTEM OPTIONAL FOR COFFEE LIDS CONVEX MOLD LIDS

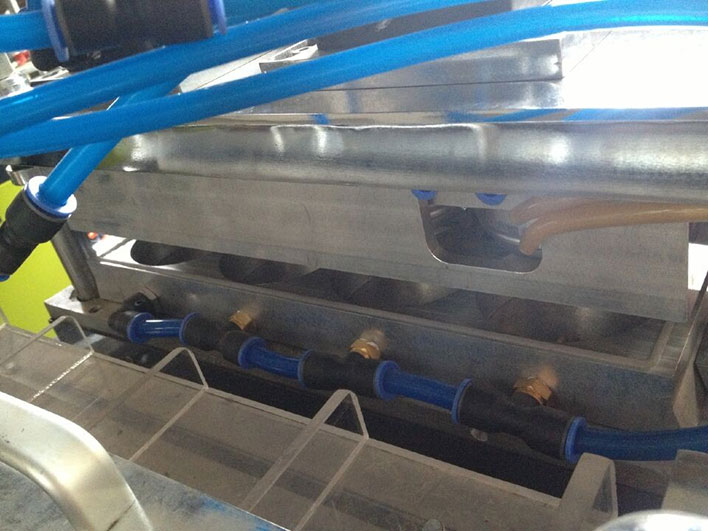

Thermo forming mould design, and you can connect to air cooling or water cooling system easily.

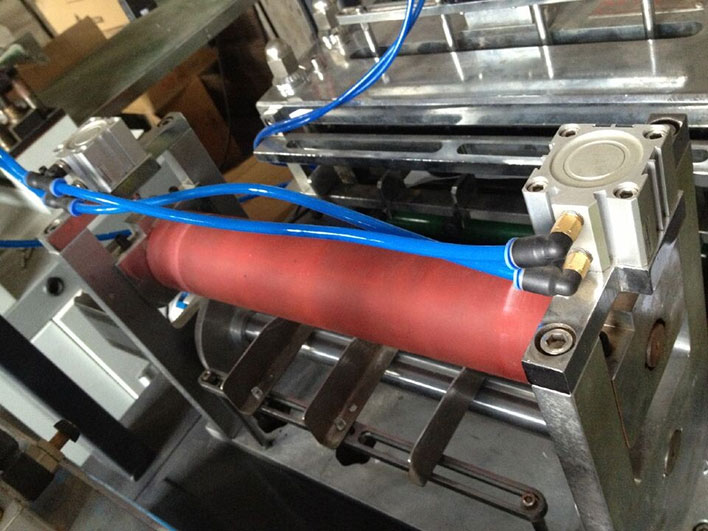

SERVO roller guide design more fluent

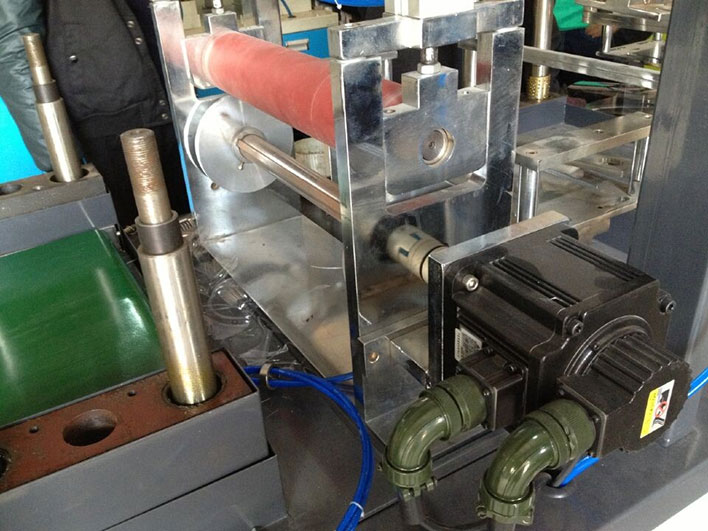

Servo motor feeding system

Sample picture show:
