MB-450

Cup Lid Forming Machine with Servo Motor feeding system

description

MB-450 cup lid machine can use almost all kinds of plastic material, like PVC, PET, PS, HIPS and so on, you can make lids with diameter 60-260mm by changing moulds.

Technical Data:
1. Speed: 20-30 strokes/min.
2. Output: if the lid diameter is <= 95mm, we can get 8 pcs,2 rows per stroke
3. Max roll diameter: 540mm
4. Max Forming Depth: 45mm.
5. Max Forming Area: 430*260mm
6. Total Power: 6kw.
7. Air Consumption:  0.3cbm/min.
8. Air Pressure: 0.4-0.7mpa.
9. Dimensions of Machine: 3600mm×1100mm×1750mm.
10. Weight: 1500kg.

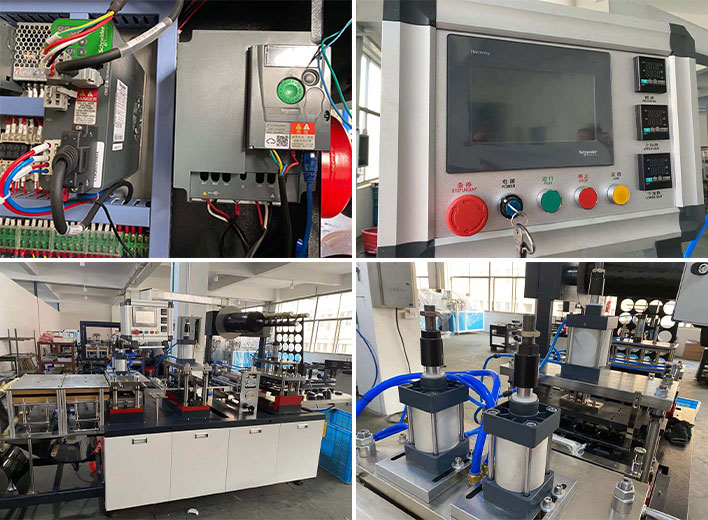

DETAIL SHOW:

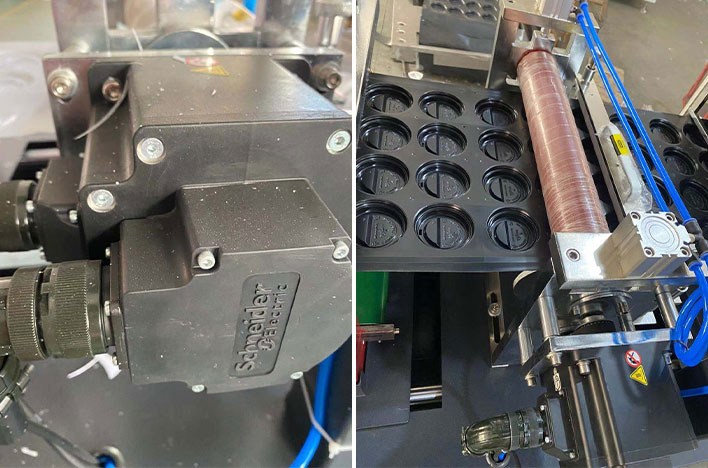

SCHNEIDER SERVO FEEDING SYSTEM FOR MORE PRECISE AND STABLE RUNNING.

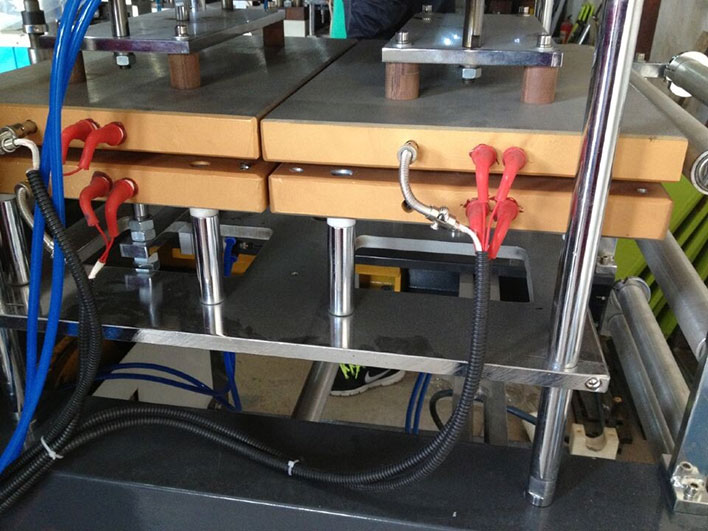

2 STEPS PREHEATING SYSTEM ENSURE YOU HAVE A BETTER FORMING EFFECT.

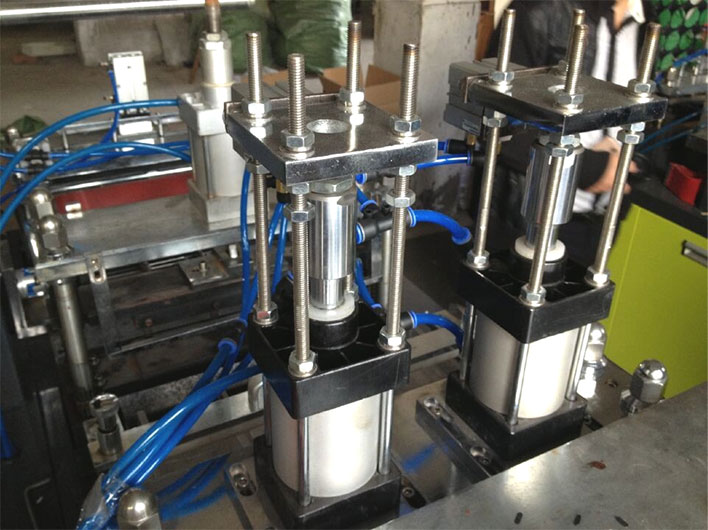

DOUBLE CYLINDER FOR BETTER FORMING EFFECT

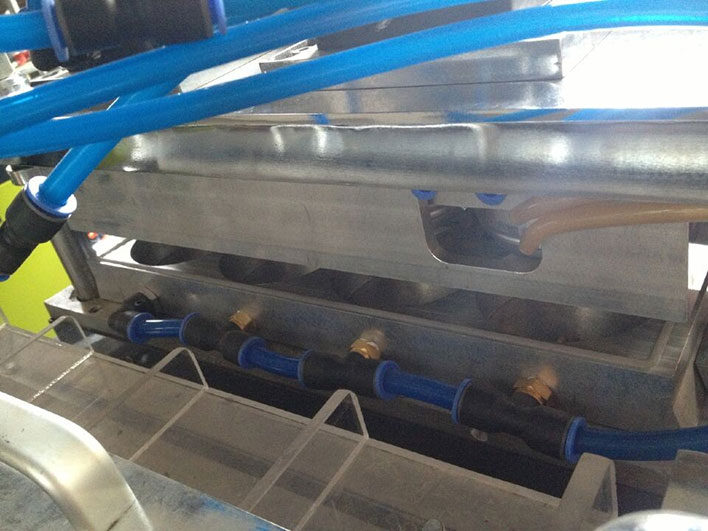

FORMING MOULD EASY TO CONNECT TO AIR OR WATER COOLING SYSTEM



Sample picture show:
